E2273

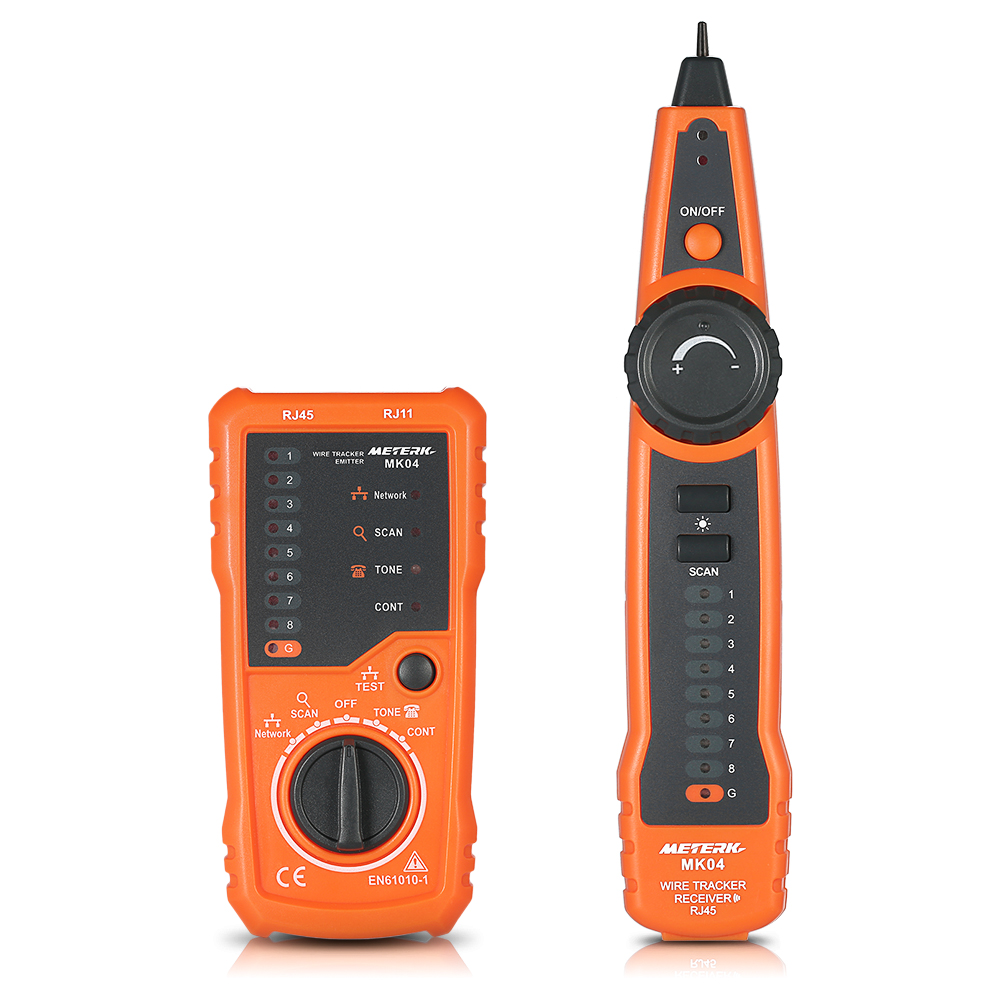

Multi-functional RJ11 RJ45 Cable Check Wire Measuring Tester

- Overview
- FAQ
- Reviews
This instrument is a multi-functional handheld cable testing tool. It has a wide application with reinforced cable types and multiple functions.
Features:
EASY & CONVENIENT TO OPERATE: Work perfectly when the RJ11 RJ45 cable is on power.
WIRE TRACING FUNCTION: Trace RJ11, RJ45, cables or other metal wire (via adapter).
LINE FUNCTION: Easy and fast to locate the breakpoint without opening the wire's cover.
NETWORK CABLE COLLATION: Judge short-circuits, breaking the circuit, open circuit, and crossing.
MULTI-FUNCTIONAL DESIGN: Test line level, positive and negative polarity.
STATUS OF TELEPHONE LINE TEST: Test the working status of the telephone line(idle, ringing, and off-hook) and judge TIP and RING line.
CONTINUITY CHECKING: Can check continuity in circuits.
WIDE APPLICATION: It is a necessary testing tool for telecommunication engineering, wiring engineering, and network maintenance person.
COMES WITH EARPHONE: Great for use in the noisy environment or private search in crowded places to avoid interference.
Specifications:
Brand Name: Meterk
Material: ABS
Color: Orange
Work Temperature: 0~40℃,maximum 80% relative humidity (non-condensing)
Storage Temperature: -10~50℃, maximum 80% relative humidity (non-condensing, remove batteries)
Operating Altitude: <2000 meters
Anti-explosion Rating: IP40
Distance of Emitting Signal: >3000 meters
Safety Class: IEC61010 -1 600V CAT Ⅲ, pollution class Ⅱ RoHS CE FCC WEEE
Battery(Included): Emitter: 1 * 6F22/9V Battery; Receiver: 1 * 6F22/9V Battery
Emitter Size: 130 * 65 * 60mm / 5.12 * 2.56 * 2.36in
Receiver Size: 200 * 20 * 38mm / 7.87 * 0.78 * 1.50in
Emitter Weight: 159g / 5.61oz
Receiver Weight: 69g / 2.43oz
Package Size: 22.5 * 10.5 * 3.5cm / 8.66 * 4.13 * 1.4in
Package Weight: 487g / 8.48oz
Package List:
1 * Emitter
1 * Receiver
1 * Pair of Earphone
1 * RJ11 Clip Adapter Cable
1 * RJ45 Cable
1 * Storage Bag
1 * User Manual (English + French + German + Italy + Spanish)
